The load loss of the amorphous alloy and silicon steel sheet is the same, and the electricity charge is calculated at 1.0 RMB/KWH At any load rate, the amorphous alloy transformer changes relative to the silicon steel with the same capacity and energy efficiency grade pressure, have greater energy saving advantages.

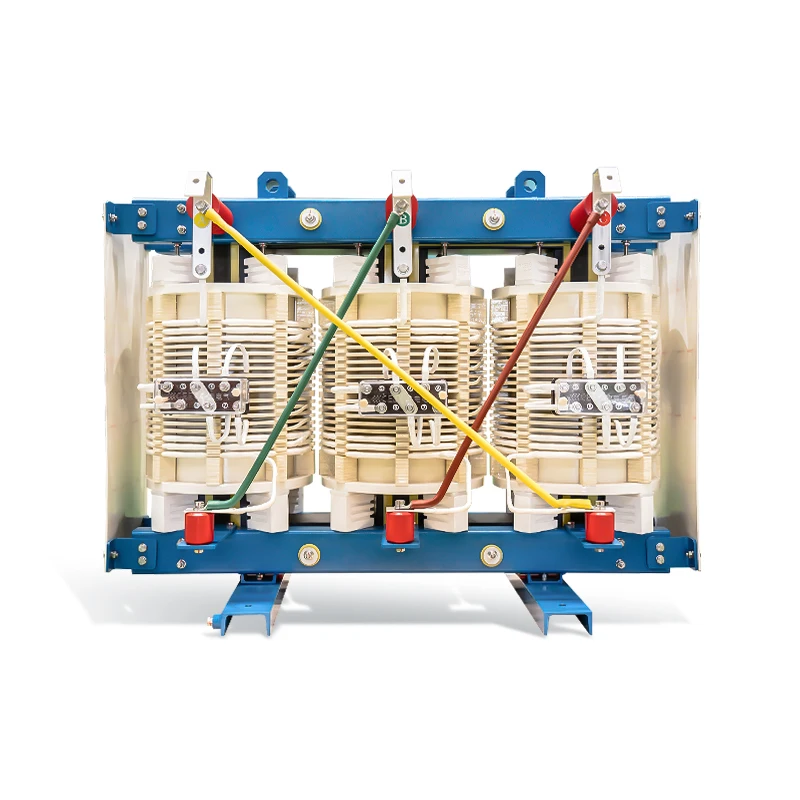

Taking a semi-enclosed SCRBH19-2500kVA amorphous alloy dry transformer as an example, compared with the SCB18 dry type transformer, it will save 10,862KWH of electricity every year, and the electricity bill is calculated by 1 RMB/KWH, and the annual cost will be saved by about 11,000 RMB; ln the amorphous dry type transformer at least 30 years of service life, it will save more than 300,000 RMB of electricity.

Product Features:

1. DuPont™ Nomex® aramid insulation material is used for high-temperature resistance, mechanical strength, electrical insulation, and stability.

2. It has vibration model simulation analysis and effective noise reduction.

3. lt has a unique semi-encapsulated structure, strong dust resistance high insulation performance, and strong overload capacity.

4. The low-voltage coil is of foil-wound structure, NOMEX material is selected as the insulation between interlayers and the end, the lead copper bar and copper are welded by ammonia arc through special equipment, and the coil is baked and cured by VPl vacuum pressure impregnation at high temperature which significantly reduces the noise of the transformer during operation.

5. The high voltage coil is a segmented cylinder layer coil, air duct heat dissipation, end sealing, and NOMEX paper winding on the surface; Dustproof, moisture-proof, and salt spray prevention.

6. The active parts adopt a coil as the load-bearing body, with a core mounting structure. The lapping part on the core adopts a special glue end sealing process to ensure the minimum force and lightweight on the core.

7. Flame retardant, explosion-proof, non-pollution, high fire rating excellent characteristics are more suitable for charging stations, data centers, hospitals, smart zones, and other areas.
