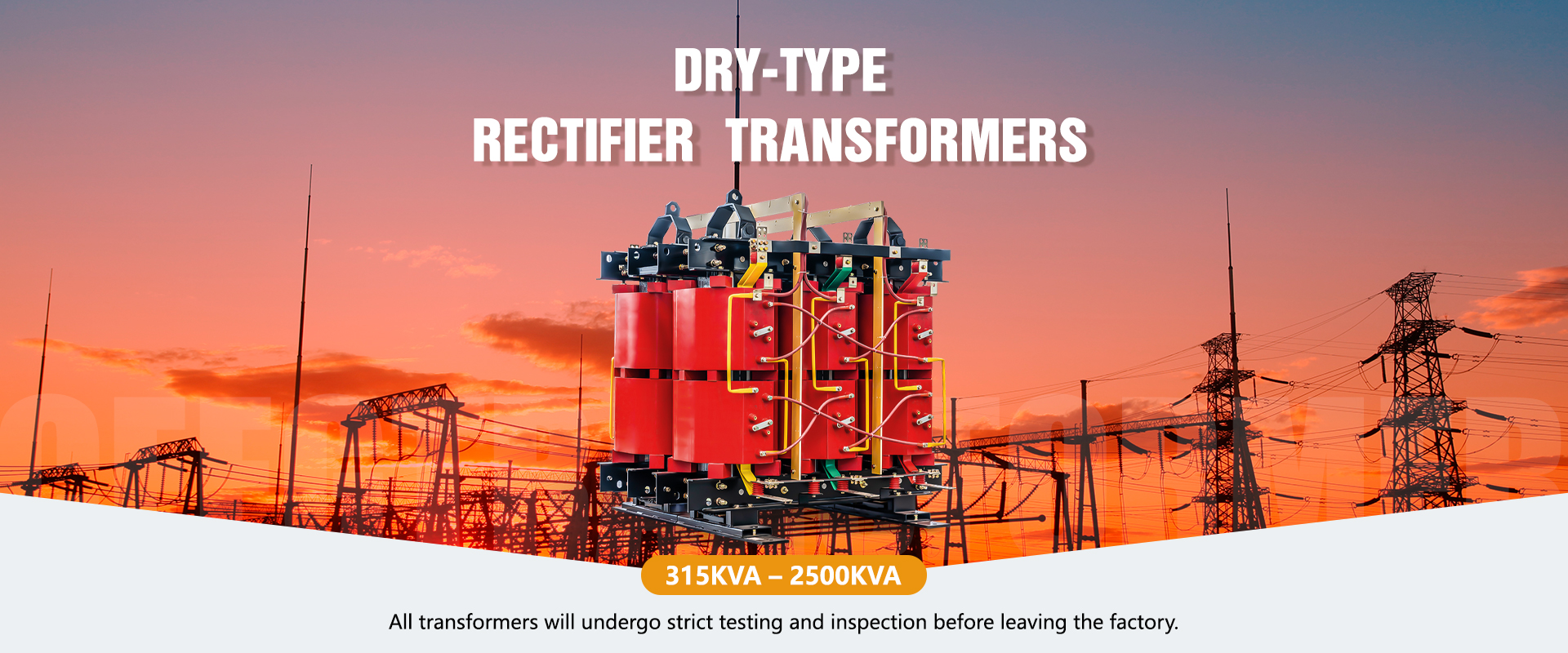

CEEG Dry-Type 24-Pulse Rectifier Transformers ZBSCB Series

CEEG Dry-Type 24-Pulse Rectifier Transformers ZBSCB Series-qgwx.jpg

Rectification is the general term for three operating modes: rectification, inversion, and frequency conversion, among which rectification is the most widely used. Most industrial rectified DC power supplies are generated by rectifier equipment consisting of rectifier transformers and rectifiers connected to the AC power grid.

The most common application of rectifier transformers is in the electrochemical industry, where electrolysis of colored metal compounds is used to produce aluminum, magnesium, copper, and other metals; electrolysis of salt is used to produce chlor-alkali; and electrolysis of water is used to produce hydrogen and oxygen.

With issues such as the depletion of fossil energy, the deteriorating ecological environment, and frequent extreme weather events, there has been explosive growth in the hydrogen energy industry. Hydrogen energy, as a rich and green low-carbon secondary energy source, is gradually becoming one of the important carriers of the global energy transition.

With the requirements of carbon peak and carbon neutrality, the combination of hydrogen production rectification equipment and electrolysis water technology with renewable energy sources such as photovoltaics, wind power, or hydropower can produce high-purity hydrogen and oxygen, which will have wider applications in the global economy.

Product Performance Features:

1. Safety and reliability: The transformer is impregnated with non-toxic, flame-retardant epoxy resin, with high mechanical strength, difficult to ignite, fire-resistant, and pollution-free.

2. Convenient installation: Dry-type rectifier transformers are delivered as complete units and can be put into operation immediately upon installation, convenient and efficient.

3. High overload capacity: The insulation heat resistance level of the transformer is Class H, with a heat resistance temperature of up to 180°C. Maximum overload capacity reaches 200%.

4. Low noise: Noise is reduced by 3~5 decibels compared to national standards.

5. Investment saving: Dry-type rectifier transformers can be installed with other electrical equipment such as rectifiers, eliminating the need for separately designed distribution rooms, saving space, and reducing initial investment.

6. Diverse varieties: Complete product range covering special transformers in various fields such as rectifiers, electric furnaces, and frequency conversion transformers.

7. Customization: Flexibly designed according to specific customer requirements, with rapid response.

8. Authority certification: Certified by the National Electrical Products Quality Supervision and Inspection Center.

CEEG Dry-Type 24-Pulse Rectifier Transformers ZBSCB Series.jpg

Technical Parameters
24-Pulse General Rectifier Transformers
Model	Capacity(KVA)	Rated Voltage(KV)		Tapping Range	Connection Section	Short Circuit Impedance	Efficiency	Weight(kg)
Model	Capacity(KVA)	Net Side	Valve Side	Tapping Range	Connection Section	Short Circuit Impedance	Efficiency	Weight(kg)
ZBSCB10	200	10 6.3	0.4 0.66 0.69	2*2.5%	Dyn11 Yyn0 Dd0	4.0	≥0.97	1250
ZBSCB10	250					4.0	≥0.97	1430
ZBSCB10	315					4.0	≥0.97	1570
ZBSCB10	400					4.0	≥0.98	1750
ZBSCB10	500					4.0	≥0.98	1970
ZBSCB10	630					6.0	≥0.98	2250
ZBSCB10	800					6.0	≥0.98	2590
ZBSCB10	1000					6.0	≥0.98	2940
ZBSCB10	1250					6.0	≥0.98	3420
ZBSCB10	1600					6.0	≥0.98	3830
ZBSCB10	2000					6.0	≥0.99	4500
ZBSCB10	2500					6.0	≥0.99	5350
ZBSCB10	500	35 36 37 38.5				6.0	≥0.98	2680
ZBSCB10	630					6.0	≥0.98	3300
ZBSCB10	800					6.0	≥0.98	3810
ZBSCB10	1000					6.0	≥0.98	4650
ZBSCB10	1250					6.0	≥0.98	5250
ZBSCB10	1600					6.0	≥0.98	5750
ZBSCB10	2000					6.0	≥0.99	6380
ZBSCB10	2500					6.0	≥0.99	7390

24-Pulse General Rectifier Transformers
Model	Capacity(KVA)	Rated Voltage(KV)		Tapping Range	Connection Section	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge（mm)
Model	Capacity(KVA)	Net Side	Valve Side	Tapping Range	Connection Section	Short Circuit Impedance	Efficiency	Weight(kg)	Gauge（mm)
ZBSCB10	315	10 6.3	0.4 0.66 0.69	2*2.5%	Dyn11 Yyn0 Dd0	4.0	≥0.97	1570	660 x 660
ZBSCB10	400					4.0	≥0.98	1750	660 x 660
ZBSCB10	500					4.0	≥0.98	1970	820 x 820
ZBSCB10	630					6.0	≥0.98	2250	820 x 820
ZBSCB10	800					6.0	≥0.98	2590	820 x 820
ZBSCB10	1000					6.0	≥0.98	2940	820 x 820
ZBSCB10	1250					6.0	≥0.98	3420	820 x 820
ZBSCB10	1600					6.0	≥0.98	3830	820 x 820
ZBSCB10	2000					6.0	≥0.99	4500	820 x 820
ZBSCB10	2500					6.0	≥0.99	5350	820 x 820
ZBSCB10	500	35 36 37 38.5				6.0	≥0.98	2680	820 x 820
ZBSCB10	630					6.0	≥0.98	3300	820 x 820
ZBSCB10	800					6.0	≥0.98	3810	820 x 820
ZBSCB10	1000					6.0	≥0.98	4650	1070 x 1070
ZBSCB10	1250					6.0	≥0.98	5250	1070 x 1070
ZBSCB10	1600					6.0	≥0.98	5750	1070 x 1070
ZBSCB10	2000					6.0	≥0.99	6380	1070 x 1070
ZBSCB10	2500					6.0	≥0.99	7390	1070 x 1070

Design:

Based on more than 30 years of design, manufacturing, and experimental experience in the transformer industry, CEEG has developed a set of advanced "three-dimensional + parametric" design software, that can realize automatic design, cost optimization, and simulation. Fully considering the requirements of the national and industrial standards, ensuring the advanced design of products.

High voltage coil manufacturing process:

The high-voltage winding conductor is meticulously crafted using high-quality materials and reinforced with long and short-cut fiberglass mats. It is cast within a vacuum using the world's most advanced Heidrich vacuum casting system. This process effectively suppresses the occurrence of partial discharge, with partial discharge levels ≤ 5PC.

Low voltage coil manufacturing process:

The low-voltage winding adopts a high-quality foil conductor and is wound on an automatic foil winding machine. This winding machine utilizes patented technology for "foil wire hydraulic energy-saving tension coiling devices," ±0.5mm high-precision detection, and advanced argon arc welding techniques, all of which play a critical role in ensuring the quality of coil winding.

Iron Core manufacturing process:

The iron core is crafted from high-quality, highly permeable oriented silicon steel sheets using a 45 ° full oblique step lapping process. Its surface is coated with a special moisture-resistant and rust-resistant coating, effectively reducing no-load loss, no-load current, and noise levels.

Advanced Testing and Inspection Facilities:

All products strictly control the production process and quality links, and conduct strict tests and inspections according to national standards and customer-customized requirements before leaving the factory, including partial discharge inspection, lightning resistance and electric shock inspection, noise inspection, and other necessary inspection items. Advanced test and detection equipment and perfect inspection and detection system ensure the high quality and high quality of products.

CEEG production ability (3).jpg CEEG certificates.jpg
