CEEG KBSG2-T Mining Flameproof Dry-Type Transformer

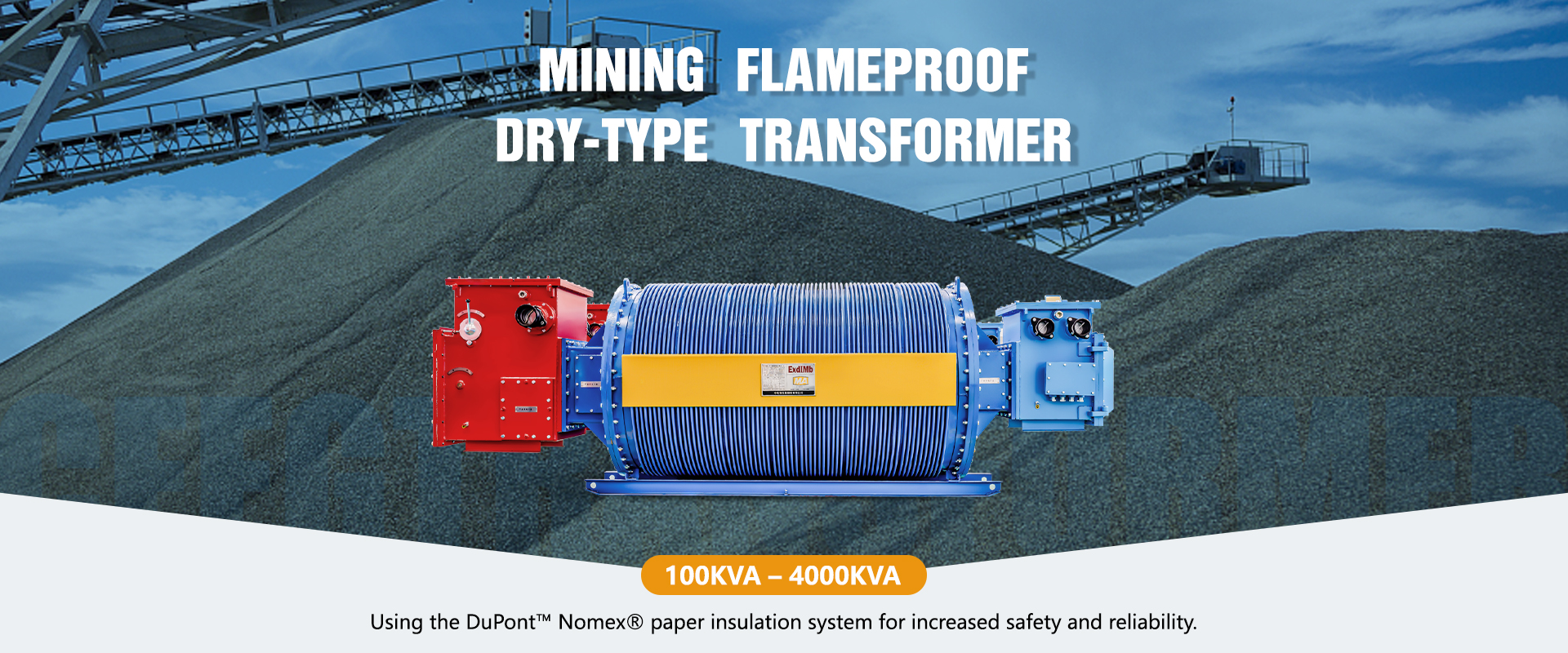

CEEG KBSG2-T Mining Flameproof Dry-Type Transformer.jpg

Key Advantages:

1. We have a production base for mining explosion-proof transformers, with application performance of more than 10,000 units of explosion-proof transformers.

2. An enterprise specializing in the integrated design and production of mining explosion-proof transformers and explosion-proof switches.

3. Innovative full-wave corrugated structure with a patented design to increase heat dissipation area. The cylindrical explosion-proof enclosure enhances shell strength and can withstand 1MPa pressure, ensuring improved explosion-proof performance.

4. Utilizes DuPont NOMEX paper insulation system for enhanced safety and reliability.

5. Incorporates advanced design and testing methods and comprehensive production and processing techniques to ensure stable and reliable explosion-proof structural performance.

6. Low losses, minimal partial discharge, low noise, and strong heat dissipation capabilities.

Maintenance-free, safe, flame-retardant, explosion-proof, non-polluting, and suitable for direct installation.

Working Principle:

1. The variable frequency transformer section adopts the low-voltage dual-splitting method to obtain two sets of three-phase power sources with a phase difference of 30 degrees. A static screen is installed between the high and low voltages, and the insulation level of the low-voltage coil is increased to the 10kV voltage level to meet the higher common-mode voltage generated by the secondary side frequency conversion rectifier device. The power supply transformer is placed in the explosion-proof chamber of the main transformer to provide control power for the frequency converter.

2. The high-voltage switch has an isolation switch and a circuit breaker to disconnect the control power and load current. The main power source adopts a PLC comprehensive protection system for monitoring and fault isolation, while the auxiliary transformer uses fuses for overcurrent protection.

3. The low-voltage switch adopts a dual-circuit design and uses two sets of PLC comprehensive protection systems for mutual monitoring and detection, completing equipment operation monitoring and fault isolation.

4. The high and low voltage switches communicate with the downstream frequency converter simultaneously to achieve phase closure lock and interlock functions, avoiding equipment damage due to operational errors.

CEEG KBSG2-T Mining Flameproof Dry-Type Transformer.jpg

KBSG2-T Mining Flameproof Dry-Type Transformer
Model	Rated Capacity（kva)	Primary Voltage	Secondary Voltage	Connection Section	No-Load Loss（W）	Load Loss（W）	Short Circuit Impedance	No-Load Current
KBSG2-T-100/6	100	6000±5%	693/400 1200/693	Yy0(d11)	520	920	4	2.5
KBSG2-T-125/6	125	6000±5%			600	1080	4	2.5
KBSG2-T-160/6	160	6000±5%			700	1300	4	2
KBSG2-T-200/6	200	6000±5%			820	1550	4	2
KBSG2-T-250/6	250	6000±5%			950	1800	4	2
KBSG2-T-315/6	315	6000±5%			1100	2150	4	1.8
KBSG2-T-400/6	400	6000±5%			1300	2600	4	1.8
KBSG2-T-500/6	500	6000±5%			1500	3100	4	1.5
KBSG2-T-630/6	630	6000±5%			1800	3680	4	1.5
KBSG2-T-800/6	800	6000±5%	1200/693 3450	Yy0(d11) Yyn0	2050	4500	4	1
KBSG2-T-1000/6	1000	6000±5%			2350	5400	4	1
KBSG2-T-1250/6	1250	6000±5%			2750	6500	4	1
KBSG2-T-1600/6	1600	6000±5%			3350	8000	4	0.8
KBSG2-T-2000/6	2000	6000±5%	1200 3450	Yy0 Yyn0	3800	9500	4.5	0.6
KBSG2-T-2500/6	2500	6000±5%	1200 3450	Yy0 Yyn0	4500	10600	5	0.6
KBSG2-T-3150/6	3150	6000±5%	3450	Dyn11	5300	12500	5.5	0.6
KBSG2-T-4000/6	4000	6000±5%	3450	Dyn11	6100	14000	6	0.6
KBSG2-T-50/10	50	10000±5%	693/400 1200/693	Yy0(d11)	390	680	4	2.5
KBSG2-T-80/10	80	10000±5%			490	880	4	2.5
KBSG2-T-100/10	100	10000±5%			560	1050	4	2.5
KBSG2-T-125/10	125	10000±5%			650	1300	4	2.5
KBSG2-T-160/10	160	10000±5%			800	1500	4	2
KBSG2-T-200/10	200	10000±5%			950	1800	4	2
KBSG2-T-250/10	250	10000±5%			1100	2100	4	2
KBSG2-T-315/10	315	10000±5%			1300	2500	4	1.8
KBSG2-T-400/10	400	10000±5%			1500	3000	4	1.8
KBSG2-T-500/10	500	10000±5%			1750	3500	4	1.5
KBSG2-T-630/10	630	10000±5%			2000	4100	4	1.5
KBSG2-T-800/10	800	10000±5%	1200/693 3450	Yy0 Yyn0	2300	5100	4	1.2
KBSG2-T-1000/10	1000	10000±5%			2600	6100	4.5	1.2
KBSG2-T-1250/10	1250	10000±5%			3100	7400	4.5	1
KBSG2-T-1600/10	1600	10000±5%			3800	8500	5	1
KBSG2-T-2000/10	2000	10000±5%	1200 3450	Yy0 Yyn0	4500	9700	5	0.7
KBSG2-T-2500/10	2500	10000±5%	1200 3450	Yy0 Yyn0	5200	10800	5.5	0.7
KBSG2-T-3150/10	3150	10000±5%	3450	Dyn11	6100	12800	5.5	0.7
KBSG2-T-4000/10	4000	10000±5%	3450	Dyn11	7000	15000	6	0.7

CEEG Transformer Production Base covers an area of over 600 acres (40 hectares), with a total construction area of 180,000 square meters and a workforce of more than 1,200 workers. Equipped with a complete set of world-class transformer production and testing equipment including cutting, vacuum casting, vacuum impregnation, and testing, it has an annual production capacity of 30 million kVA of power transformers.

The factory possesses a comprehensive set of cutting-edge equipment representing industry-leading standards, including shearing machines, fully automatic winding machines, robotically operated automatic stacking machines, Germany's Hedrich vacuum casting tanks, vacuum impregnation equipment, air cushion transport vehicles, fully enclosed production workshops with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, kerosene gas-phase drying equipment, and 200-ton cranes. Additionally, it has pioneered the application of transformer collaborative design platforms in the industry, effectively integrating product data, product development, and production processes.
