Performance Features

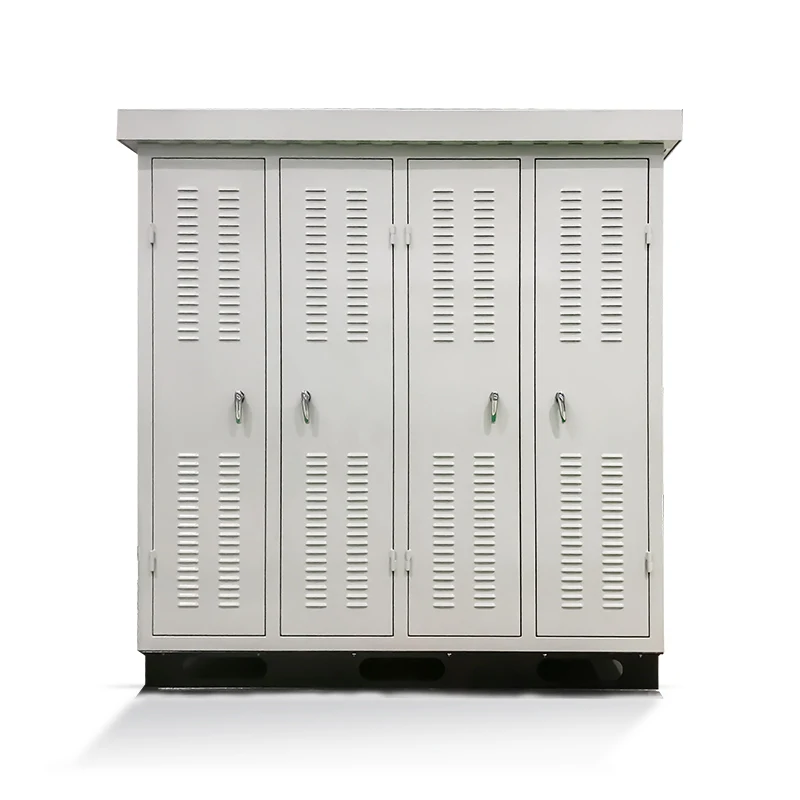

1. Modular Cabinet: The cabinet adopts a modular assembly, making installation convenient and fast.

2. Noise Reduction: Utilizes a through-core screw structure, significantly reducing noise.

3. Special Techniques: Coils undergo multiple impregnation processes, while electrical and mechanical connectors employ special techniques to enhance "triple protection" performance.

4. 45° Cold-rolled Silicon Steel Sheets: The core material utilizes high-quality cold-rolled silicon steel sheets, carefully stacked at a 45° angle.

5. Stuffing Box: A stuffing box for cable entry and exit is provided on the transformer enclosure. The stuffing box can be positioned on the left or right side. For transformers with a capacity of 500kVA and above, the cable entry and exit are generally arranged at the bottom, with cable holes on the transformer base and devices for preventing cable scratches and securing cables.

Ultra-high Insulation, Triple Protection against Vibration

Our company manufactures marine (offshore platform) transformers, which are dry-type self-cooled (air-cooled, water-cooled) transformers. They can be used as equipment for power supply, lighting, isolation, propulsion, and rectification in the power grid. The insulation class can be divided into B, F, and H levels. Marine low-voltage transformers have a capacity of 8000kVA and below, with voltage levels below 1kV. Marine medium-voltage and offshore platform transformers have a capacity of 8000kVA and below, with voltage levels below 10kV.

We have a professional technical team that can design and manufacture various special specifications of products according to customer requirements.
